• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1956/1957

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 30260

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EBF80 EBC81 EL95

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 6/12 Volt

• Material
• Metal case

• from Radiomuseum.org

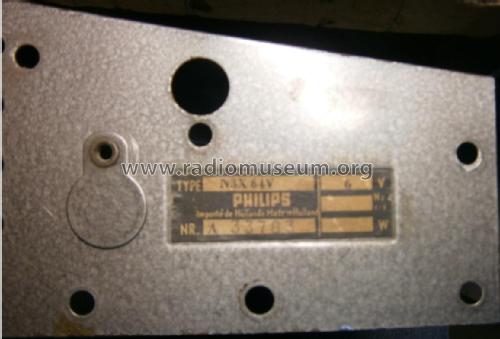

• Model: N3X64V - Philips; Eindhoven tubes

• Notes
• Transistoren: AF185, 3x AF127, AC126, OC 26

• Price in first year of sale
• 285.00 CHF

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
