• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1970 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 289840

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• AC128 BY122 BZY63 BZY61

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 117; 127; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

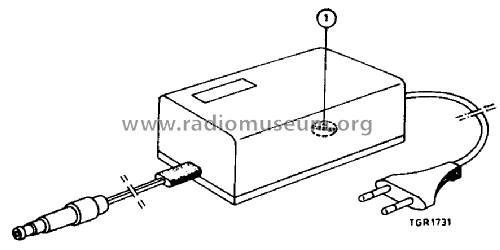

• Model: N6501 /00 /10 /15 /19 /43 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 95 x 55 x 35 mm / 3.7 x 2.2 x 1.4 inch

• Notes

•  D.C. 7,5; 9 V / 250 mA.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
