- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1972–1975 ?
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 202427
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: N8307 - Philips; Eindhoven tubes
- Dimensions (WHD)
- 36 x 155 x 36 mm / 1.4 x 6.1 x 1.4 inch
- Notes

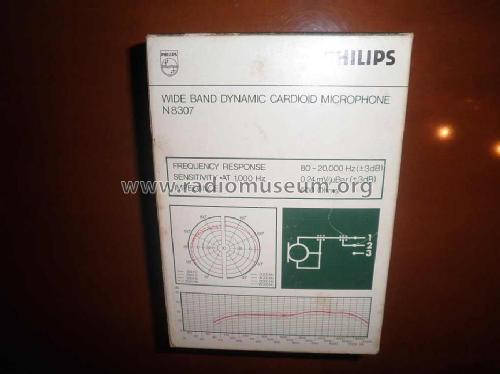

- wide band dynamic cardioid microphone, frequency responce 80-20.000 Hz (+/- 3db), sensitivity at 1.000 Hz 0.24mv/μBar (+/- 3db) impedance 500 Ohms
Anschlusskabel 3,5 m, mit 3 pol. DIN Stecker.
- Net weight (2.2 lb = 1 kg)
- 0.130 kg / 0 lb 4.6 oz (0.286 lb)
- Author
- Model page created by Dimitrios Karas. See "Data change" for further contributors.
