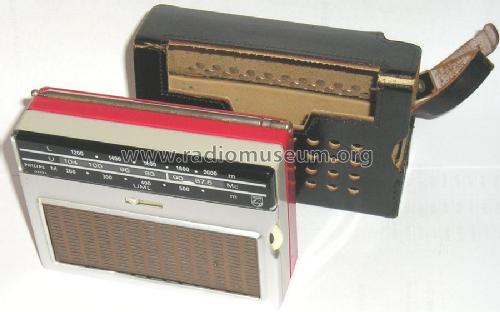

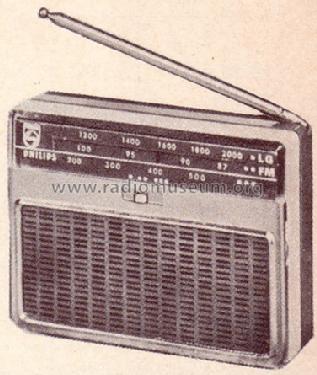

Nanette L1W52T
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1966/1967
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6987
-
- Brand: Deutsche Philips-Ges.
Q: Philips Service
L1W52T/22L mit Tasche, FM bis 104 MHz

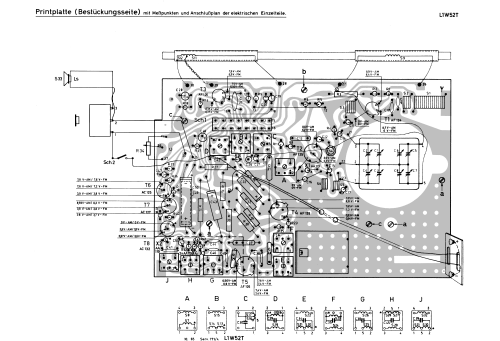

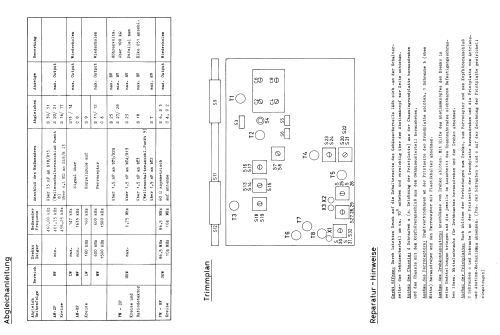

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Main principle
- Superheterodyne (common); ZF/IF 460/6750 kHz
- Tuned circuits
- 5 AM circuit(s) 8 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
- Power out
- 0.07 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Nanette L1W52T - Philips Radios - Deutschland
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 105 x 75 x 30 mm / 4.1 x 3 x 1.2 inch
- Notes
- Halbleiterliste: nur einmal pro Typ;
Transistoren: AF124, AF125, 3× AF126, AC125, AC127, AC132.
FM Bereich - je nach Variante (=Suffix) - bis: 100 / 104 / 108 MHz.
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Source of data
- Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
