• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 100113

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• UCL82 UY85

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 6 W (unknown quality)

• from Radiomuseum.org
• Model: Electrófono NG-4012 - Philips Ibérica, COPRESA,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 398 x 249 x 145 mm / 15.7 x 9.8 x 5.7 inch

• Notes

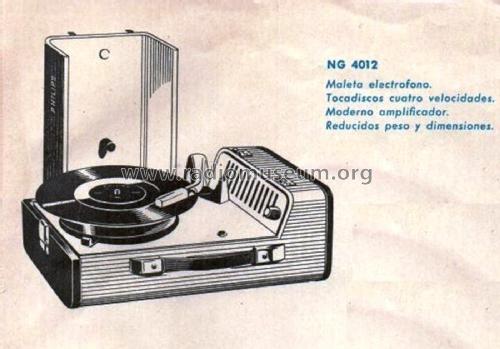

• Philips Ibérica; Maleta tocadiscos, electrófono, tipo AD-4012

  Compuesta por:

  • Tocadiscos: AG-2046
  • Cabezal:      AG-3019
  • Altavoz:       AD-2400-Z

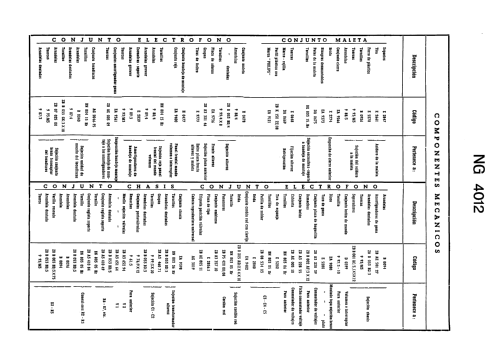

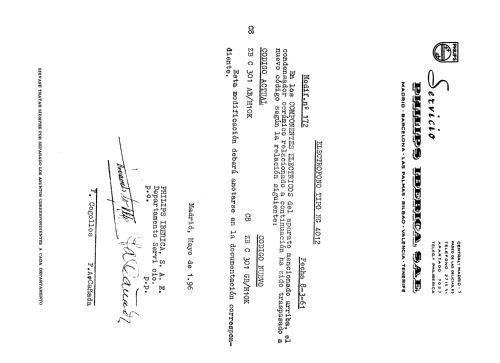

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
