- Country
- Argentina
- Manufacturer / Brand
- Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
- Year
- 1960
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 167838

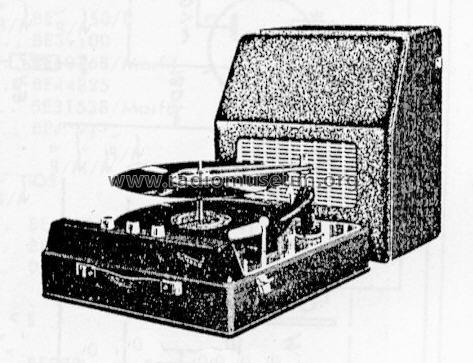

Image from Philips Service Manual 1966
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification; 3 AF stage(s)
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (unknown quality)
- from Radiomuseum.org
- Model: NG-4503 - Philips Argentina, FAPESA,
- Shape
- Tablemodel, low profile (big size).
- Notes
- Tocadiscos con cambiador automatico AL1020. Capsula estereo AG3301 conectada como mono. Consumo 45 W. Motor 12,5W. Interesante aplicacion de la valvula ECH81 conectada como amplificadora de audio. El circuito es identico al modelo NG4502.
- Literature/Schematics (1)
- Manual de Servicio Philips 1966
- Author
- Model page created by Jose Vigil. See "Data change" for further contributors.
