• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967–1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6944

• • Brand: Deutsche Philips-Ges.

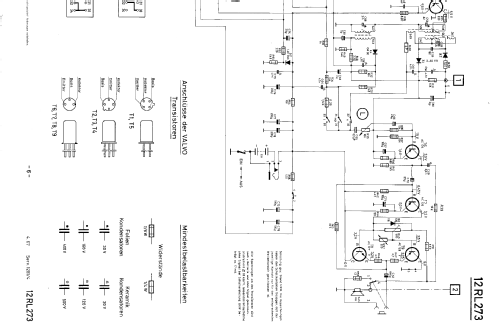

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF121 AF121 AF124 AF126 AF126 AC125 AC126 AC127 AC128 AA119 AA119 AA119 OA90 OA90

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Nicolette de Luxe 12RL273 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 175 x 105 x 50 mm / 6.9 x 4.1 x 2 inch

• Notes

• Netzbetrieb mit zusätzlichem Netzteil möglich.

  Siehe auch Philips Lugano TL 12RL273 mit identischem Chassis.

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Source of data
• Handbuch VDRG 1967/1968 / Radiokatalog Band 1, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
