• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1953/1954

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 115259

• Number of Tubes
• 4

• Valves / Tubes
• ECH42 EF41 EAF42 EL42

• Number of Transistors

• Semiconductors
• AP6002

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

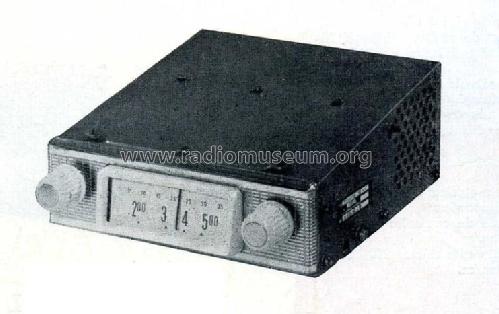

• Model: NX346V - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 178 x 54 x 180 mm / 7 x 2.1 x 7.1 inch

• Notes

• Wellenbereich MW: 186 - 585 m (1613 - 513 kHz).

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 1,595.00 PTE

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Mario Coelho. See "Data change" for further contributors.
