Octode-Super 510U
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1935 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 348233
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 110-119; 120-130 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Octode-Super 510U - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 370 x 290 x 230 mm / 14.6 x 11.4 x 9.1 inch
- Notes
-

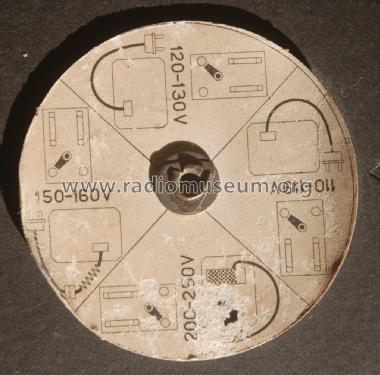

For the power range 110-119 V a resistor has to be shortcircuited. For voltages higher than 130 V an optional ballast tube could be mounted on the back panel in a special protective cage, enabling power supply with 150-160 and 200-250 V as well.
See also Philips model 510U /23.
- Net weight (2.2 lb = 1 kg)
- 9.7 kg / 21 lb 5.9 oz (21.366 lb)
- Author
- Model page created by José Manuel Silvestre. See "Data change" for further contributors.
