• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1967 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 203166

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC88 ECC88 E810F E810F ECC88 ECC88 ZZ1000 GL8 D13-27GH

• Number of Transistors
• 35

• Semiconductors
• AF124 AF118 AF186 BSY39 ASZ21 2N930 2N929 BC107 or. BF115 ASZ16 AC128 ASZ18 OA90 OA95 AAZ15 BAY38 BYY21 BYY20 OA202 BYX11 BZY59 BZY62 OAZ212

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

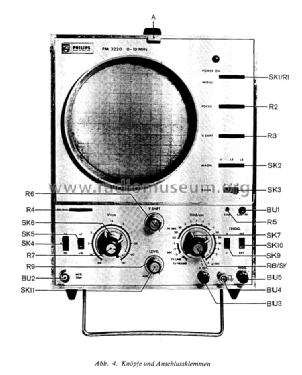

• Model: Oszillograf PM 3220 - Philips; Eindhoven tubes

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 200 x 270 x 380 mm / 7.9 x 10.6 x 15 inch

• Notes

• Philips 10 MHz 1-Kanal Oszillograf PM 3220;
  5" (13 cm) Schirmdurchmesser, Leuchtfarbe grün.
  Entspricht PM 3221 jedoch ohne Verzögerungsleitung im Y-Verstärker.
  Corresponds to PM 3221 but without delay line on vertical amplifier.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Source of data
• -- Original-techn. papers.

d_Philips_PM3220_man.pdf

3196 KB

• Documents regarding this model

• Author
• Model page created by Giuseppe Feniello. See "Data change" for further contributors.
