• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1974

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 207537

• Number of Tubes
• 1

• Valves / Tubes
• D14-240GH

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 90-264 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

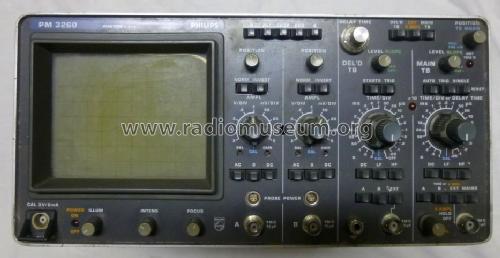

• Model: Oscilloscope PM3260 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 316 x 154 x 410 mm / 12.4 x 6.1 x 16.1 inch

• Notes
• Frequency range: 10 Hz-120 Mhz, rise time 3 ns;
  2 channel, C.R.T 80x100 mm P31 phosphor, acceleration voltage 20 kV;
  Y-axis deflection factor: 5 mV/DIV - 2 V/DIV;
  X-axis 1 s/DIV - 50 ns/DIV

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 6,600.00 DM

• Mentioned in
• - - Manufacturers Literature (Katalog Philips Messgeräte 1974)

• Author
• Model page created by Ottmar Rollmann. See "Data change" for further contributors.
