• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1953 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 265083

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 24

• Valves / Tubes
• EF42 EF42 EF42 EF42 EF42 EF42 EF42 EF42 ECC40 ECC40 ECC40 ECC40 ECC40 EB41 EB41 EB41 EL41 EL41 EZ40 EZ40 EZ40 1B3GT 1B3GT DG10-6

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 127; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

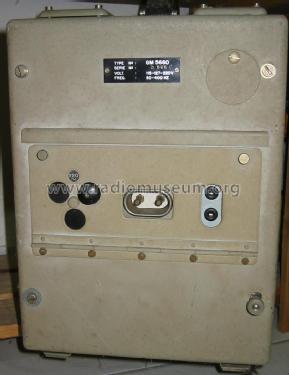

• Model: Oszilloskop GM 5660 - Philips; Eindhoven tubes

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 248 x 328 x 498 mm / 9.8 x 12.9 x 19.6 inch

• Notes

• "High speed oscilloscope for pulse, radar and t.v. applications with built-in pulse generator"

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Robert Düring. See "Data change" for further contributors.
