P133

Philips Canada

Data
Forum
Pictures
Collections

  • Year
  • 1953/1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 147779

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: P133 - Philips Canada

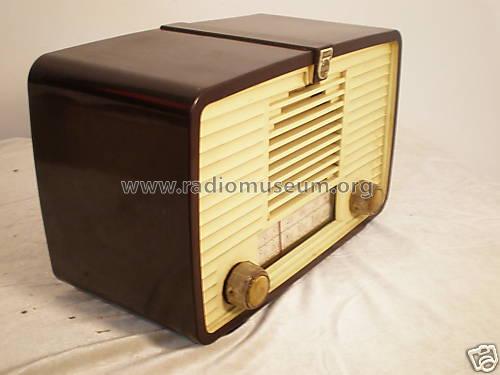

  • Shape
  • Tablemodel, with any shape - general.
  • Notes

  • Philips Canada P133;

    Philips Canada P133; Same schematic used for P143; Similar in design (but different tube lineup) to Rogers Majestic R533-3, as Rogers Majestic became a division of Philps sometime after 1941

  • Circuit diagram reference
  • Radio College of Canada
  • Mentioned in
  • RCC Supp. 31 page 63
  • Author
  • Model page created by Ashis Mukerjea. See "Data change" for further contributors.
