• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169300

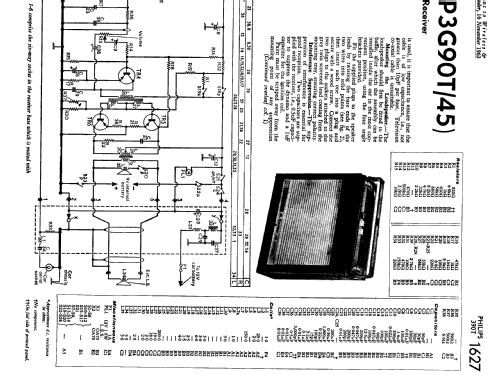

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF116 AF117 AF117 OC82D OC82 OC82

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 9 or 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: P3G90T - Philips Electrical, Lamps,

• Dimensions (WHD)
• 7.9 x 2.3 x 7.2 inch / 201 x 58 x 183 mm

• Notes
• Can be used as either a car radio or portable radio. For car use the set is inserted into a mounting tray which connects the set to external speaker, 12 volt supply, & car aerial. When used as a portable the set uses internal speaker & PP7 9 volt battery.

• Net weight (2.2 lb = 1 kg)
• 3.5 lb (3 lb 8 oz) / 1.589 kg

• Source of data
• -- Schematic

• Literature/Schematics (1)
• Radio And Television Servicing books (R&TVS)

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
