• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 30319

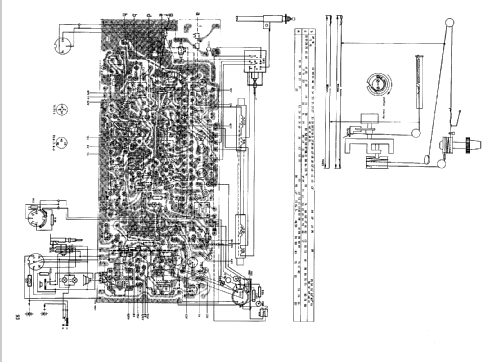

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• AF124 AF125 AF126 AF126 AF126 AC125 AC126 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

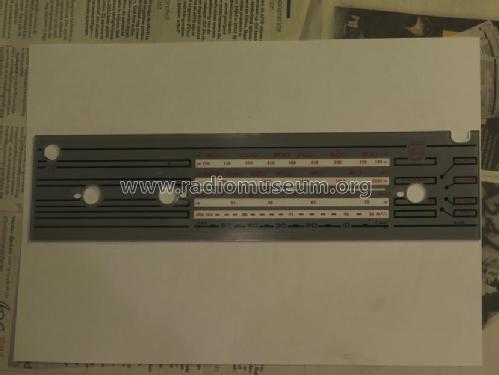

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Storage and/or dry batteries / 5 x 1,5 ; 6 or 12 Volt

• Power out
• 1.8 W (unknown quality)

• from Radiomuseum.org

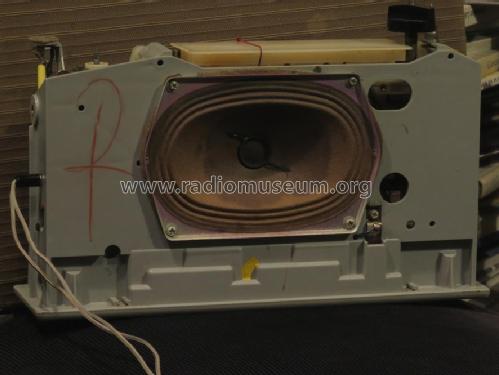

• Model: P5X54T - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 310 x 180 x 90 mm / 12.2 x 7.1 x 3.5 inch

• Notes

• This Philips model P5X54T "Autoportable" can be powered by 5 internal batteries of 1,5 V or by a car battery (6 or 12 V).

  The IF of 452 kHz applies to version /03 and /04.
  Versions /06 and /16 have an IF of 460 kHz.
