• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1958/1959

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 21981

• • Brand: Deutsche Philips-Ges.

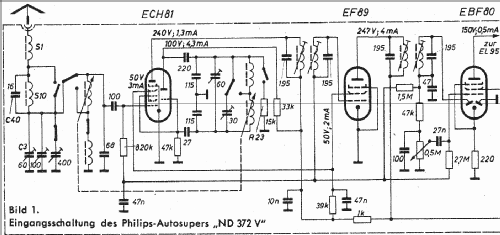

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH81 EF89 EBF80 EL84

• Number of Transistors

• Semiconductors
• AP6016

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Paladin 372 ND372V/01 [EL84] - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 80 x 210 mm / 7.1 x 3.1 x 8.3 inch

• Notes
• HF-Teil und Stromversorgungsteil gemeinsam oder getrennt montierbar; Zerhacker: AP6016.
  Standardausführung für sämtliche Wagentypen.

• Price in first year of sale
• 174.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59
