• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28216

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF124 AF124 AF121 AF121 AF121 AC127 AC128 AC128 AC127 AC128 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

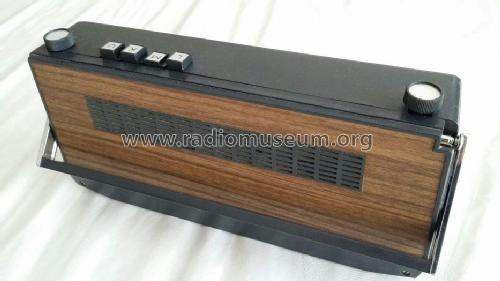

• Model: Passat de Luxe 12RL203 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 263 x 121 x 60 mm / 10.4 x 4.8 x 2.4 inch

• Notes

• Kurzwelle Lupe, 6 Dioden.



• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Price in first year of sale
• 165.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
