- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1977 ??
- Category
- Power supply/conditioner or battery or charger
- Radiomuseum.org ID
- 327637
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 18
- Semiconductors
- BC157 BC157 BC147 BC147 BDY20 BD135 BC157 BC157 BC147 BC147 BDY20 BD135 BC157 BC157 BC147 BC147 BDY20 BDY20
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 237; 254 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: PE1514 - Philips; Eindhoven tubes
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 130 x 220 x 210 mm / 5.1 x 8.7 x 8.3 inch
- Notes
-
Der Stabilisator PE1514 liefert als Spannungsstabilisator 2x 0...20V und 1x 0...7V, stufenlos einstellbar. Als Stromstabilisator liefert er 2x 0...0,8A und 1x 0...3A, stufenlos einstellbar. Parallel-oder Serienschaltung möglich
- Net weight (2.2 lb = 1 kg)
- 6.250 kg / 13 lb 12.3 oz (13.767 lb)

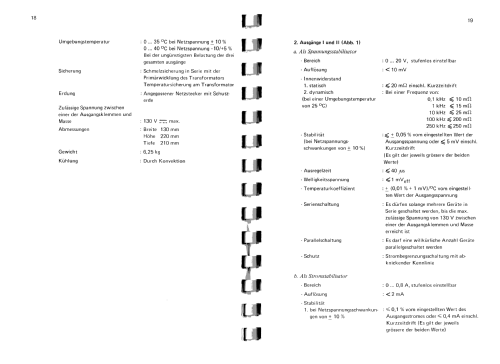

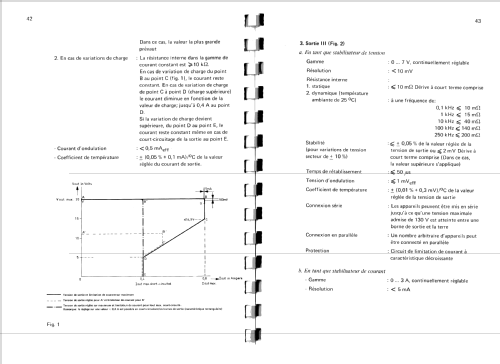

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Günter Kudicke. See "Data change" for further contributors.
