• Country
• Argentina

• Manufacturer / Brand
• Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

• Year
• 1936 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 96282

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF5 EK2 EF5 EBC3 EL2

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 23 cm = 9.1 inch

• from Radiomuseum.org

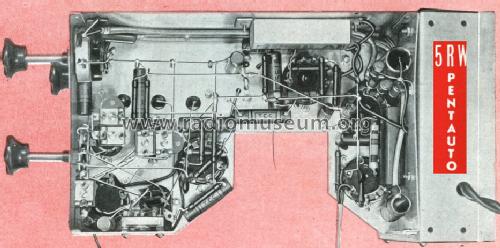

• Model: Pentauto 5RW - Philips Argentina, FAPESA,

• Shape
• Chassis only or for «building in»

• Notes
• Similar to the chassis 5R - with added SW reception capability. Vibrator for +B.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Robert Sarbell † 22.3.22. See "Data change" for further contributors.
