Philetta 15AL265 /00B /01B
Philips; India
- Country
- India
- Manufacturer / Brand
- Philips; India
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 350602
Picture from collection of Alok Saha.
Picture from collection of Alok Saha.
Picture from collection of Alok Saha.
Picture from collection of Alok Saha.

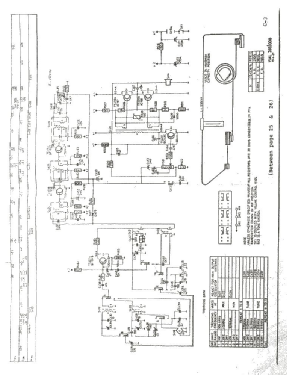

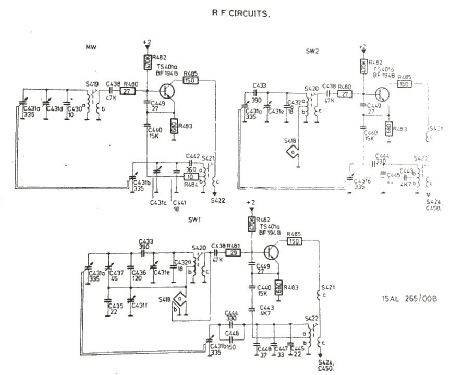

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Philetta 15AL265 /00B /01B - Philips; India
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 165 x 75 mm / 11 x 6.5 x 3 inch
- Notes
-
It is possible to operate the set on 230 V with Philips AC Adapter Unit 15ER3014, mounted inside the set and converting it as a mains set.
- Mentioned in
- -- Schematic
- Author
- Model page created by Gidi Verheijen. See "Data change" for further contributors.
