Philetta B2D93A elfenbein

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22141

• • Brand: Deutsche Philips-Ges.

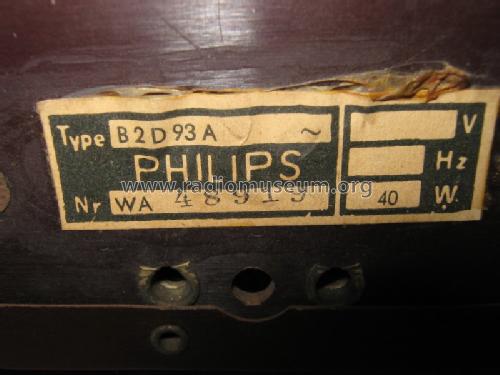

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL95

• Number of Transistors

• Semiconductors
• B250C75

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110/127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philetta B2D93A [elfenbein] - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 290 x 185 x 165 mm / 11.4 x 7.3 x 6.5 inch

• Notes

• Im Schaltplan ist C69 (Abblockung der Regelspannung, AVR) mit 4,7 nF angegeben was falsch ist. Tatsächlich verbaut wurde der Wert von 47 nF.

• Net weight (2.2 lb = 1 kg)
• 3.7 kg / 8 lb 2.4 oz (8.15 lb)

• Price in first year of sale
• 195.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60

• Literature/Schematics (1)
• -- Original-techn. papers.
