Philetta 234K BD234U/K

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7026

• • Brand: Deutsche Philips-Ges.

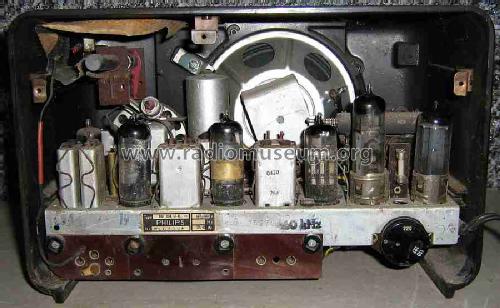

• Picture

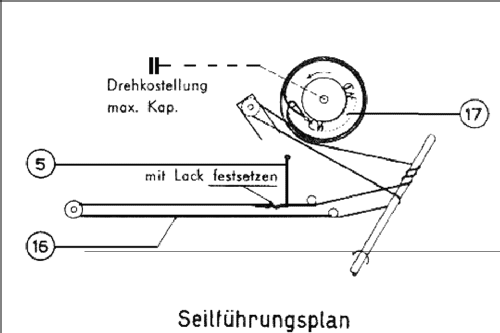

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UC92 UCH81 UF85 UABC80 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• AC/DC-set / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philetta 234K BD234U/K - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 180 x 140 mm / 11 x 7.1 x 5.5 inch

• Notes

• 2 Modellfarben:

  • Mahagoni, Preis 175,- DM
  • Elfenbein,  Preis 179,- DM

  Lautsprecher: 9742X

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 175.00 DM

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55 / Radiokatalog Band 1, Ernst Erb
