Philetta Color 825 Ch= KT2 - 14C825 /22

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1978/1979
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 219504
    • Brand: Deutsche Philips-Ges.

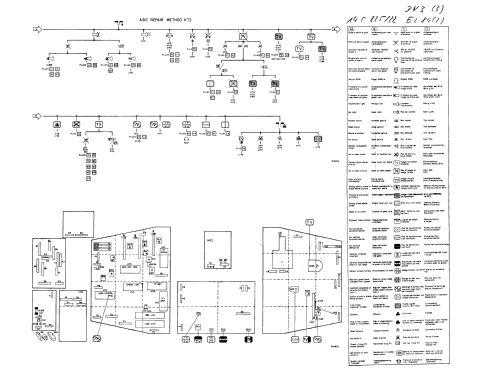

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Philetta Color 825 Ch= KT2 - 14C825 /22 - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 450 x 350 x 320 mm / 17.7 x 13.8 x 12.6 inch
  • Notes

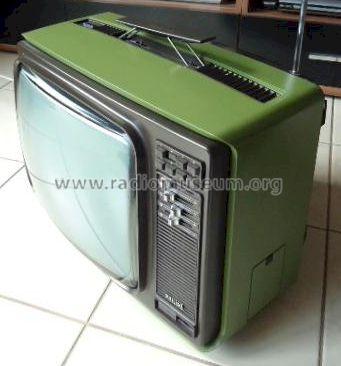

  • Philips Philetta Color 825, Typ 14 C 825/22F Ch= KT2;
    ~35 cm/14" PAL, 8 Programm VHF/UHF Tuner nach CCIR B/G. 70 W Leistungsaufnahme. Ausführung Grün.

  • Mentioned in
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
