• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1983

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 156849

• • Brand: Deutsche Philips-Ges.

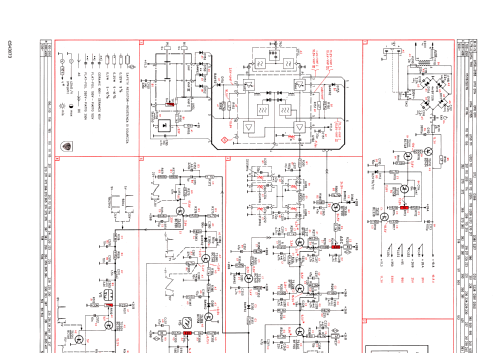

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Line / Batteries (any type) / 220/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Philetta TX912 electronic 12B912 /00C /22C /22S /22X /38C /38X /38Z Ch= TX - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• Philips 12B912 Philetta TX912 electronic in 7 Ausführungen:
  /00C, /22C, /22S, /22X, /38C, /38X, /38Z
  Chassis TX
  12"/31 cm B/W TV with electronic CCIR B/G standard VHF/UHF tuner, 8 LED indicated presets, ultra-sonic wireless remote control for channel up/down only, telescopic antenna, IEC antenna in & 12 VDC in, 28/16 W power consumption, white and metallic cabinet finish.

• Price in first year of sale
• 348.00 DM

• Mentioned in
• -- Original prospect or advert ((D) Philips Sonderprospekt TV ~1983)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
