Philette 206 A

• Country
• Switzerland

• Manufacturer / Brand
• Philips - Schweiz

• Year
• 1940–1944

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 13317

• Picture

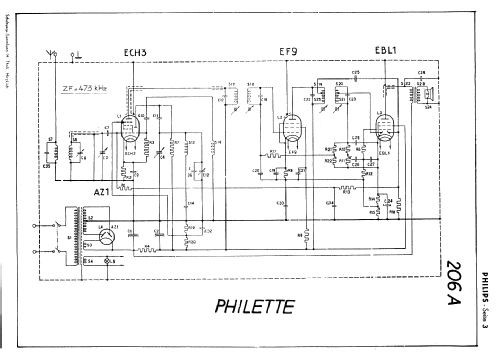

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 EF9 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philette 206 A - Philips - Schweiz

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 395 x 250 x 185 mm / 15.6 x 9.8 x 7.3 inch

• Notes

• Ausverkauf im Prospekt 1942/1943.

  Siehe auch Jura Juranette 206A und Mediator M40A.

  Nicht verwechseln mit Philips 206A (NL) mit LW, MW, KW !

• Net weight (2.2 lb = 1 kg)
• 6.3 kg / 13 lb 14 oz (13.877 lb)

• Price in first year of sale
• 195.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Thali-Schemasammlung und Tungsram-Röhrenbestückung.
