Philettina Deluxe 15RL221 /00B /01B
Philips; India
- Country
- India
- Manufacturer / Brand
- Philips; India
- Year
- 1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335780
aus Service Manual

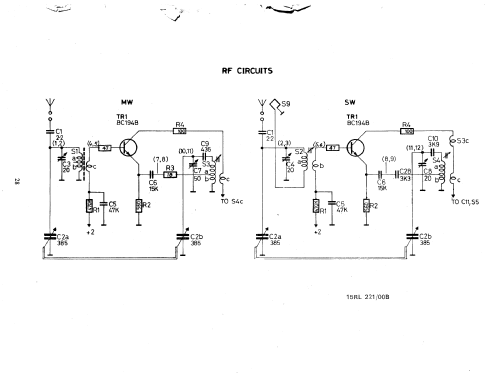

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Batteries / addl. power jack / 4 x 1.5 / ? Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Philettina Deluxe 15RL221 /00B /01B - Philips; India
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
AC127 AC128 as matched pair
- Mentioned in
- - - Manufacturers Literature (Philips Service, Philips Circuits, Volume 3, 1971-1973, published by Philips India Ltd., Central Ser)
- Author
- Model page created by Wolfgang Müllner. See "Data change" for further contributors.
