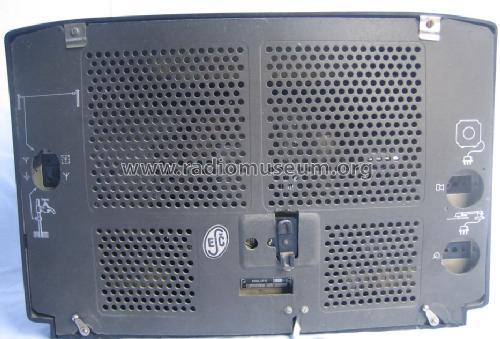

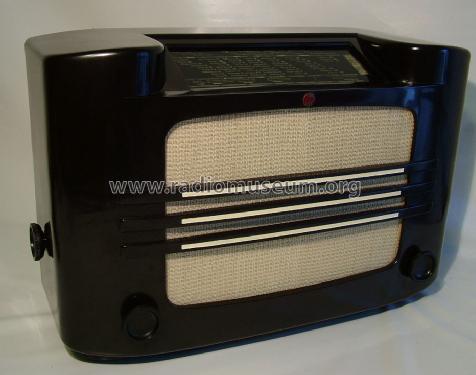

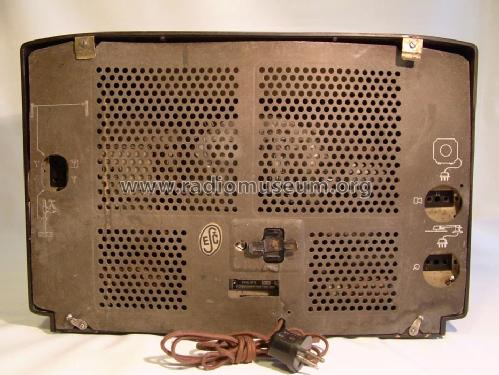

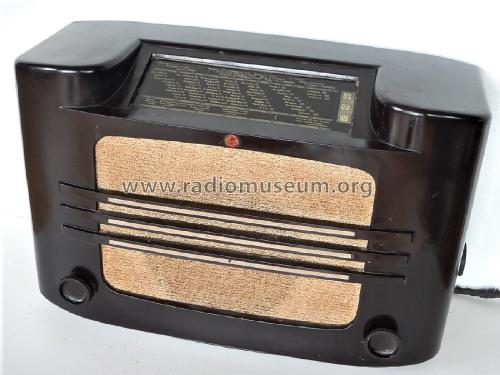

Arioso 461A-14

• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23181

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• AK2 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Arioso 461A-14 - Philips akc. spol., Praha-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 483 x 320 x 185 mm / 19 x 12.6 x 7.3 inch

• Price in first year of sale
• 1,800.00 CZK

• External source of data
• Erb

• Mentioned in
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
