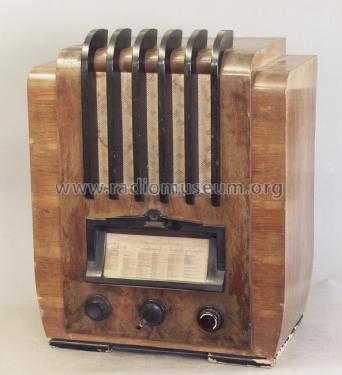

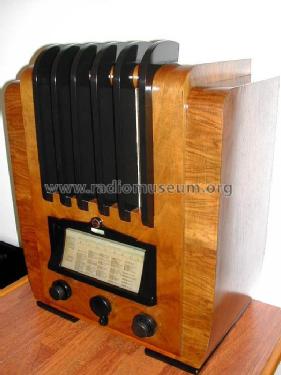

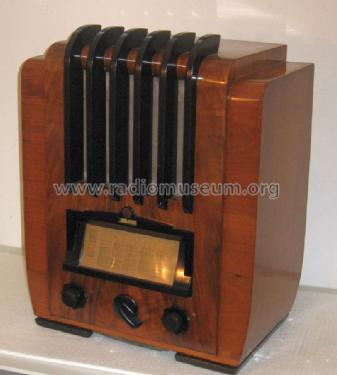

Sirius 535A-14

• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1935/1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23171

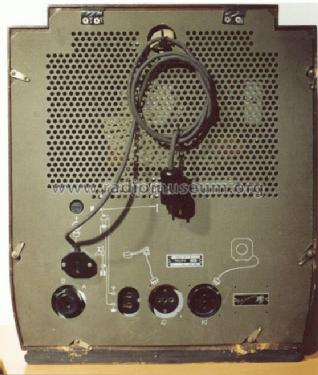

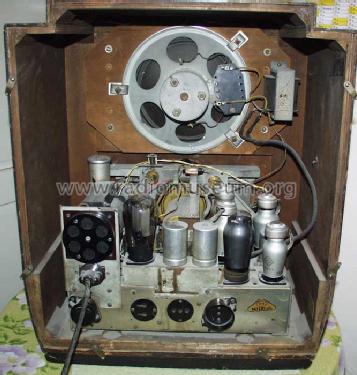

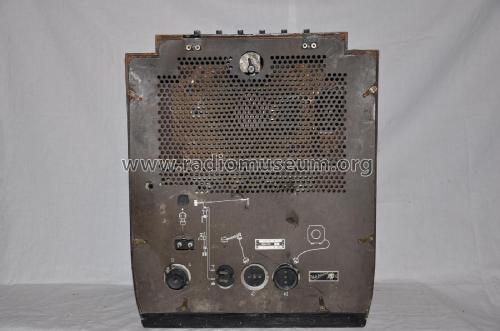

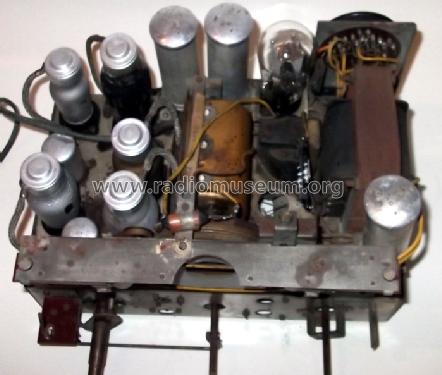

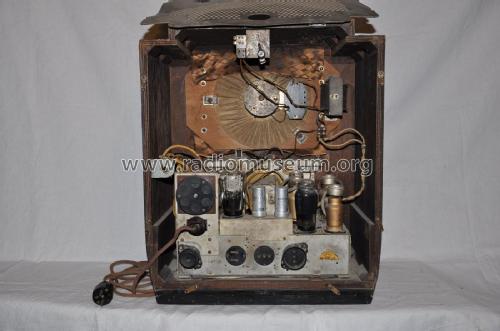

• Picture

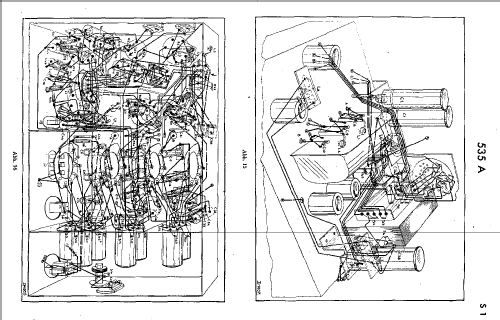

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• AF3 AK2 AF3 ABC1 AL2 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 115 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Sirius 535A-14 - Philips akc. spol., Praha-

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 440 x 545 x 280 mm / 17.3 x 21.5 x 11 inch

• Notes
• Zeigerinstrument als Abstimmhilfe

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 162 models, 137 with images and 124 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips akc. spol., Praha-Hloubetin
