Philitina B1D22A

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1962–1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 24763

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

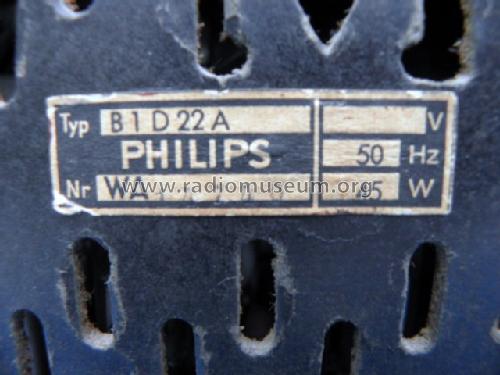

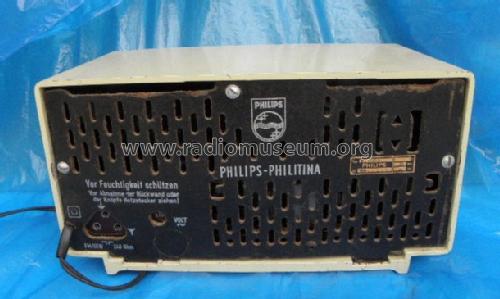

• Model: Philitina B1D22A - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 298 x 158 x 140 mm / 11.7 x 6.2 x 5.5 inch

• Notes
• Plattenantenne für LM, Wurfantenne für U.
  UKW-Bereich 87,5-104 MHz.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 199.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1962/1963

• Literature/Schematics (1)
• -- Original-techn. papers.
