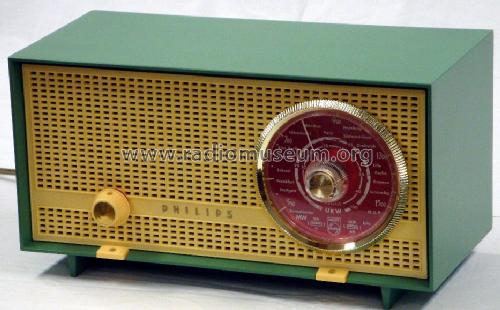

Philitina II B1D02A/00

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23436

• • Brand: Deutsche Philips-Ges.

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 UABC80 UL84 UY85

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philitina II B1D02A/00 - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 160 x 140 mm / 11.8 x 6.3 x 5.5 inch

• Notes
• Varianten: grün, braun, rot und schwarz.

• Net weight (2.2 lb = 1 kg)
• 2.4 kg / 5 lb 4.6 oz (5.286 lb)

• Price in first year of sale
• 138.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1960/61

• Literature/Schematics (1)
• -- Original-techn. papers.
