• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1951

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 187607

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• EAF42 or EAF41 ECH42 EAF42 EAF42 EL41 EL41

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Details
• Radio with other functions

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

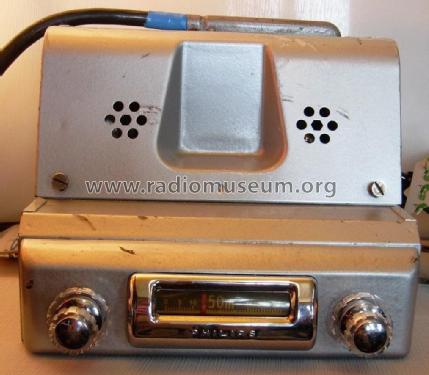

• Model: Philitouring NX713V - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Notes
• This model was also available with 24V adaptor (vibreur)
  Microphone for autocar or tourist boats: 9564/02.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Dirk Bladt. See "Data change" for further contributors.
