• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7066

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• EF42 EF42 EF42 EF42 EM34 EF42 EB41 ECH42 EAF42 EF40 EAF42 EL41 EL41 AZ41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch

• Material
• Wooden case

• from Radiomuseum.org

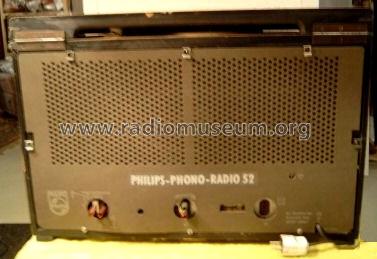

• Model: Phono-Radio 52 HD514A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 620 x 423 x 280 mm / 24.4 x 16.7 x 11 inch

• Notes
• Phono-Chassis = 2978 oder AG2003
  FM-Demodulator: Diskriminator

• Net weight (2.2 lb = 1 kg)
• 19.5 kg / 42 lb 15.2 oz (42.952 lb)

• Price in first year of sale
• 565.00 DM

• Source of data
• Kat.d.Rundf.GrossH.1952/53 / Radiokatalog Band 1, Ernst Erb
