• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1957/1958

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 21511

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EF86 EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Power out
• 3 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

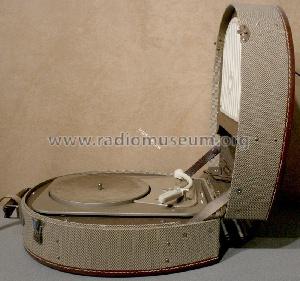

• Model: Phonokoffer NG1360D - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 170 x 370 mm / 14.2 x 6.7 x 14.6 inch

• Notes
• Philips Verstärker-Phonokoffer NG1360D. 4 Geschwindigkeiten;
  Kristallsystem AG3012 mit zwei Nadeln (Saphire);
  Frequenzbereich: 50-10000 Hz.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• Price in first year of sale
• 208.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1957/58

• Literature/Schematics (1)
• -- Original-techn. papers.
