• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964–1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102178

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D10-12GL or D10-12GH or D10-12GP

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 145; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

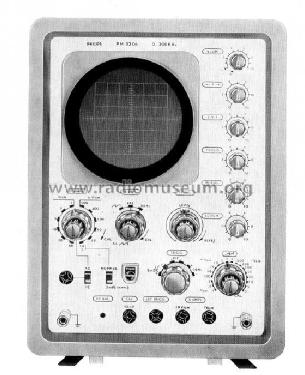

• Model: Oscilloscope PM3206 [old] - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 215 x 300 x 400 mm / 8.5 x 11.8 x 15.7 inch

• Notes

• LF-Oscilloscope: DC...100kHz @2mV/cm, DC...300kHz @50mV - 50V/cm.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 1,710.00 DM

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (2)
• - - Manufacturers Literature (Katalog: Philips Industrie-Elektronik 1966)

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
