• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1976

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 77883

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D10-160GH

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

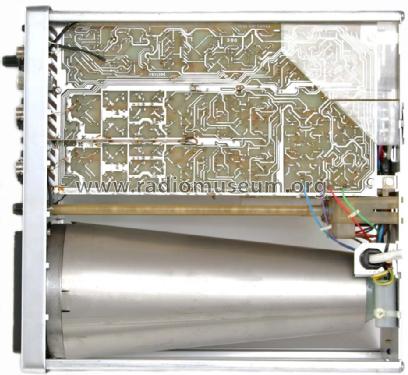

• Model: 2-Kanal Oszilloskop PM 3226 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 275 x 120 x 320 mm / 10.8 x 4.7 x 12.6 inch

• Notes

• 0-15 MHz Zweikanal-Oszilloskop. Gechopped oder alternierende Darstellung des Y-Signals, vollautomatische Triggerung, Netztriggerung und Triggerung für Zeilen-Bildsynchronimpulse eines Fernsehsignales.

  Siehe auch Philips PM 3226P mit Zusatzfunktionen der Y-Kanäle (Invert, Add) und erweitertem X-Y Betrieb.

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 17,760.00 ATS

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
