• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 102183

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• ASZ15

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

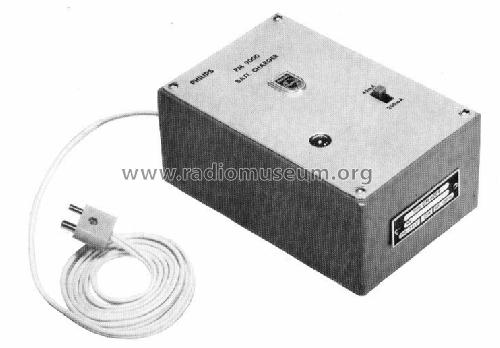

• Model: PM9000 - Philips; Eindhoven tubes

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 130 x 90 x 60 mm / 5.1 x 3.5 x 2.4 inch

• Notes
• Battery Charger for batteries up to 12 V. Charging current: 45 mA or 200 mA.

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Hugo Sneyers. See "Data change" for further contributors.
