Pocket Radio D1730
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1987 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 312608

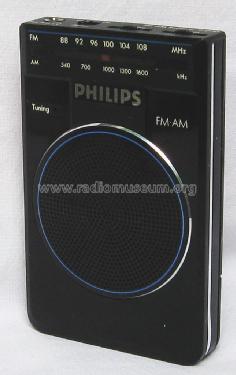

Picture from collection of Hans Piest (NL).

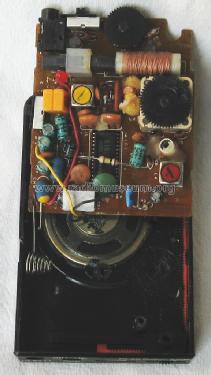

Picture from collection of Hans Piest (NL).
Picture from collection of Hans Piest (NL).
Picture from collection of Hans Piest (NL).
Picture from collection of Hans Piest (NL).
- Number of Transistors
- Semiconductors
- CXA1019
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / AAA: 2 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 cm = 1.4 inch
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Pocket Radio D1730 - Philips; Eindhoven tubes
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 58 x 90 x 15 mm / 2.3 x 3.5 x 0.6 inch
- Notes
-
AM/FM Taschenempfänger, die mitgelieferte Wurfantenne wird in den 3,5 mm Ohrhöreranschluss gesteckt oder das Kopfhörerkabel dient als Antenne. In verschiedenen Farben geliefert: D1730 /32 = schwarz.
Empfangsbereiche:
UKW: 87,5 - 108 MHz,
MW: 526,5 - 1607 kHz.Made in Korea as well as in Japan.
- Net weight (2.2 lb = 1 kg)
- 0.058 kg / 0 lb 2 oz (0.128 lb)
- Author
- Model page created by Holger Struthoff. See "Data change" for further contributors.
