Portable Radio AE2150 /00
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1998/1999
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283393
Philips specifications
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / D: 2 x 1,5 / DC 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
- Power out
- 0.3 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable Radio AE2150 /00 - Philips 飞利浦; China
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 135 x 60 mm / 8.3 x 5.3 x 2.4 inch
- Notes
-
Portable radio with analogue tuning. Wave ranges:
- FM 87.5 - 108 MHz
- MW 525 - 1606.5 kHz

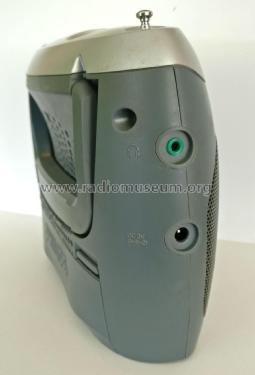

Ferroceptor for AM and telescopic aerial for FM. Headphone connector.

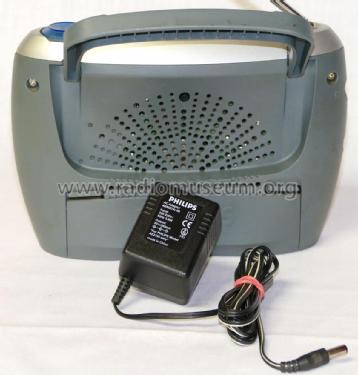

External power supply type AE3567A /00, 230 VAC to 3 VDC.
- Net weight (2.2 lb = 1 kg)
- 0.520 kg / 1 lb 2.3 oz (1.145 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Museum Roggenhofer. See "Data change" for further contributors.
