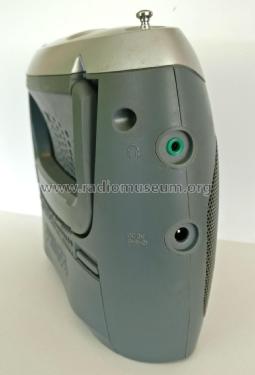

Portable Radio AE2150 /11
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1998/1999
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 283398
Philips specification sheet
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 2 x 1.5 / DC 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Portable Radio AE2150 /11 - Philips 飞利浦; China
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 210 x 135 x 60 mm / 8.3 x 5.3 x 2.4 inch
- Notes
-
Portable radio with analogue tuning. Wave ranges:
- FM 87.5 - 108 MHz
- MW 525 - 1606.5 kHz
- SW1 2.3 - 7.3 MHz
- SW2 9.5 - 21.85 MHz
Ferroceptor for AM and telescopic aerial for FM. Headphone connector.
External power supply:
- /11 = 110-127; 220-240 VAC switchable to 3 VDC
- Net weight (2.2 lb = 1 kg)
- 0.520 kg / 1 lb 2.3 oz (1.145 lb)
- Mentioned in
- - - Manufacturers Literature
