• Country
• People's Republic of China

• Manufacturer / Brand
• Philips 飞利浦; China

• Year
• 2010 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 360020

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Line plus power jack, mostly with battery or storage battery / 50-60 Hz, 220-240 / DC 9 / C: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

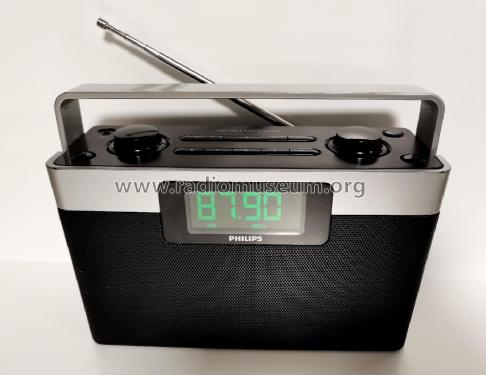

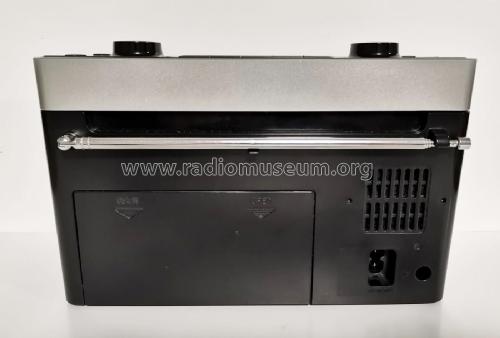

• Model: Portable radio AE2430 /12 - Philips 飞利浦; China

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 218 x 148 x 76 mm / 8.6 x 5.8 x 3 inch

• Net weight (2.2 lb = 1 kg)
• 1.330 kg / 2 lb 14.9 oz (2.93 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by Nikolai Galak. See "Data change" for further contributors.
