Portable Radio LDK391T
Philips Radio A/S; København
- Country
- Denmark
- Manufacturer / Brand
- Philips Radio A/S; København
- Year
- 1960
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 286392

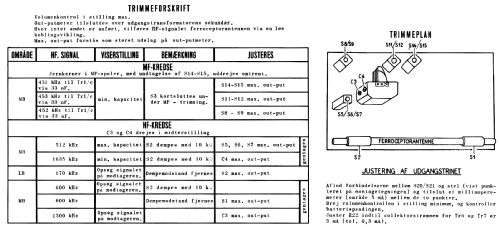

Aus den Serviceunterlagen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 3 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Various materials
- from Radiomuseum.org
- Model: Portable Radio LDK391T - Philips Radio A/S; København
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 238 x 135 x 60 mm / 9.4 x 5.3 x 2.4 inch
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
