• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 200730

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

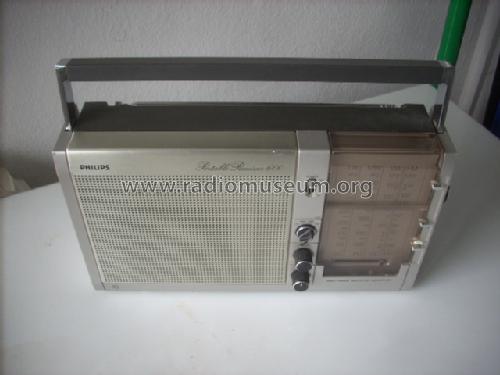

• Model: Portable Receiver 600 90AL600/00 - Philips Radios - Deutschland

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 160 x 65 mm / 10.6 x 6.3 x 2.6 inch

• Notes
• Beschriftung in englisch und französisch. KW mit Feineinsteller(Fine Tuning).

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Norbert Haselbach. See "Data change" for further contributors.
