• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1980

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158355

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors
• ED1402 ED1502 ED1602 BC549 BC368 BC369 2SB324 MC14016 CDG00 CDG24 1N4001 1N60 BZX79

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

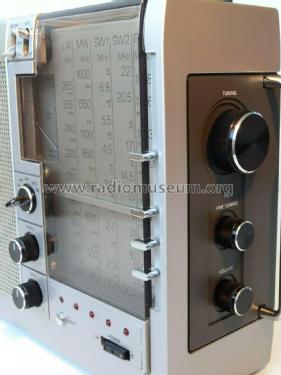

• Model: Portable Receiver 800 90AL800 /01 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 320 x 180 x 80 mm / 12.6 x 7.1 x 3.1 inch

• Notes
• 2 KW-Bänder und KW-Lupe.
  Each semiconductor type listed once.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Literature/Schematics (4)
• -- Original-techn. papers.

• Author
• Model page created by Alfred Przybilla. See "Data change" for further contributors.
