• Country
• India

• Manufacturer / Brand
• Philips; India

• Year
• 1973

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 247707

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• AC188

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Battery Eliminator 15ER3002 /00 - Philips; India

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 128 x 54 x 61 mm / 5 x 2.1 x 2.4 inch

• Notes

• 6; (7,5) 9  V / 250 mA.

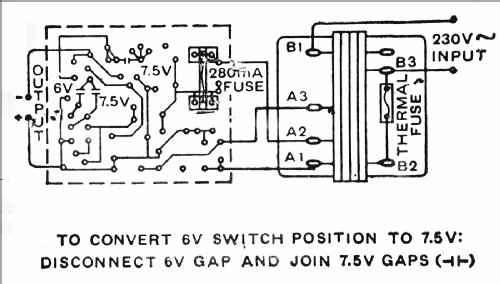

  There is a discrepancy between the drawing and the caption device!

• Mentioned in
• Philips Circuits, Volume 3, 1971-73

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
