• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 89392

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

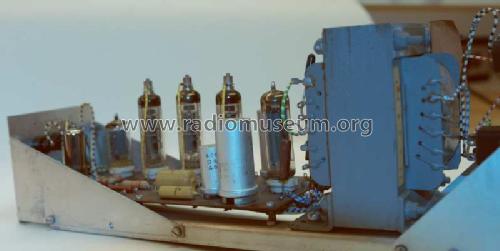

• EZ81 PL81 PL81 PL81 EF86 85A2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

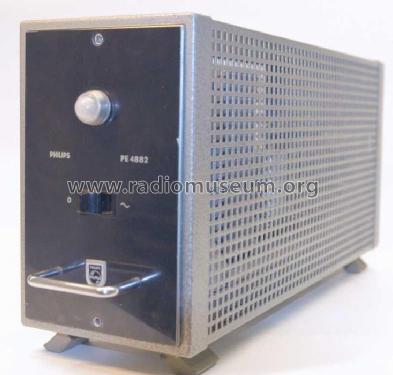

• Model: Power-Supply PE4882 /10 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 125 x 210 x 400 mm / 4.9 x 8.3 x 15.7 inch

• Notes
• Out: 250 V-; 2× 6,3 V~/3 A.

• Net weight (2.2 lb = 1 kg)
• 7 kg / 15 lb 6.7 oz (15.419 lb)

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
