Quartz Synthesized Tuner F2516 /00 /05

• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1986 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 327665

• Picture
• Schematics

Previous Next

Previous Next

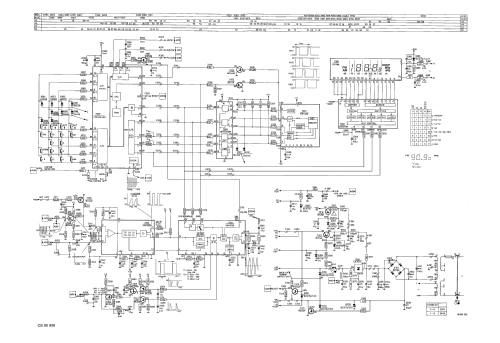

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop; ZF/IF 450/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Other Combination - see Notes; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220-240 or 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Quartz Synthesized Tuner F2516 /00 /05 - Philips Belgium Belgien

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 450 x 68 x 300 mm / 17.7 x 2.7 x 11.8 inch

• Notes

• Philips Quartz Synthesized Tuner F2516

  Versions:

  • /00: 220 V ~
  • /05: 110-127; 220-240 V ~



• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
