• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138952

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• VCL11 VY2

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110-240 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

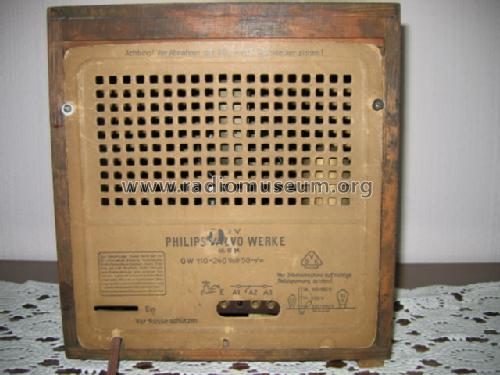

• Model: RA2V [Holz] - Philips Radios - Deutschland

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 280 x 130 mm / 10.2 x 11 x 5.1 inch

• Notes
• Nachkriegs DKE Nachbau

• Mentioned in
• Historische Radios (1-5) = zur Verknüpfung mit Modellseiten (Abele Dynamische Chronik Kap. 9.95)

• Author
• Model page created by Anton Schefzik. See "Data change" for further contributors.
