Radio AM/FM Dual Deck High Speed Dubbing AW7090 /00
Philips Malaysia; Petaling Jaya
- Country
- Malaysia
- Manufacturer / Brand
- Philips Malaysia; Petaling Jaya
- Year
- 1990 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 294576
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 AC / 6 x 1,5 DC Volt
- Loudspeaker
- 2 Loudspeakers / Ø 10 cm = 3.9 inch
- Power out
- 7 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

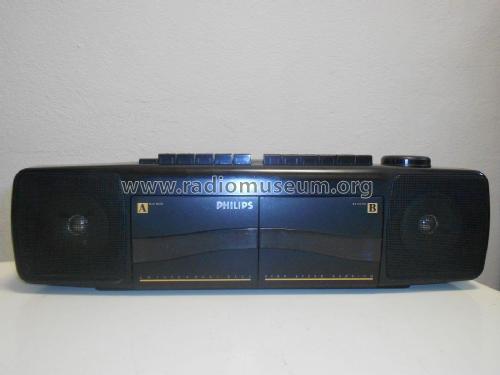

- Model: Radio AM/FM Dual Deck High Speed Dubbing AW7090 /00 - Philips Malaysia; Petaling
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 450 x 130 x 110 mm / 17.7 x 5.1 x 4.3 inch
- Notes
-
PHILIPS Radio AM/FM Dual Deck Hight Speed Dubbing mod. AW 7090/00 - controllo volume - commutatore AM/FM/FM stereo - indicatore led ricezione stereo - potenza uscita: 3,5+3,5 watt max - tasti play/pause/ f.fwd/rewind/A-B/stop/eject - commutatore radio/tape-hight speed/tape normal speed/mic - microfono incorporato - maniglia di trasporto - uscita per cuffia - antenna telescopica esterna - consumo 10 watt.
Made in Malaysia.
- Net weight (2.2 lb = 1 kg)
- 1.850 kg / 4 lb 1.2 oz (4.075 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
