• Country
• People's Republic of China

• Manufacturer / Brand
• Philips 飞利浦; China

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273039

• Number of Transistors
• 3

• Semiconductors
• BC548 BC548 BC558 U420B TEA5591

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 inch = 19.1 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

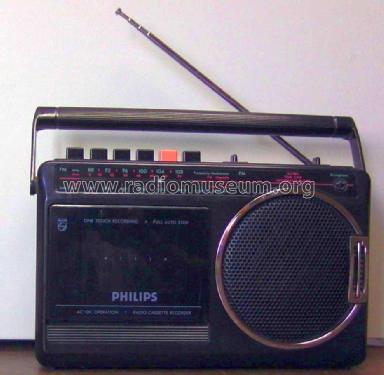

• Model: Radio Cassette Recorder D7180 /62R - Philips 飞利浦; China

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 260 x 170 x 80 mm / 10.2 x 6.7 x 3.1 inch

• Notes

• One Touch Recording, d.h., zum Aufnehmen nur die rote Record - Taste drücken.

• Net weight (2.2 lb = 1 kg)
• 1.080 kg / 2 lb 6.1 oz (2.379 lb)

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
