• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 273866

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors
• BC549 BC558 BC548 BC556 BC337 1N4148 BZX79 BF494 BA315 1N4002 BA220 TEA5570 BA1332 TDA1559 TEA2025

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / R14 6x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Rádio Gravador 06AR450 - Philips do Brasil S.A.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 435 x 194 x 100 mm / 17.1 x 7.6 x 3.9 inch

• Notes

• 2 channel stereo; phone out, 2x electret microphone for voice recording

  2 speakers per channel

  MW, FM and 2x SW

  SW1 2.2 - 7.4 MHz

  SW2 9.3 - 22 MHz

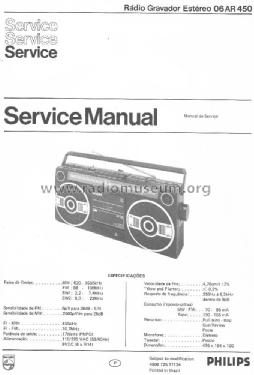

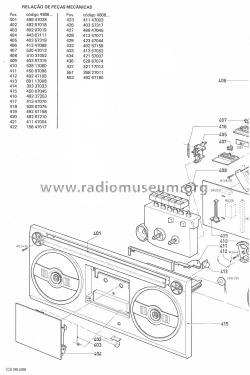

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
